The SW-OP8 is an eight output expander for the SW-1070 panel range.

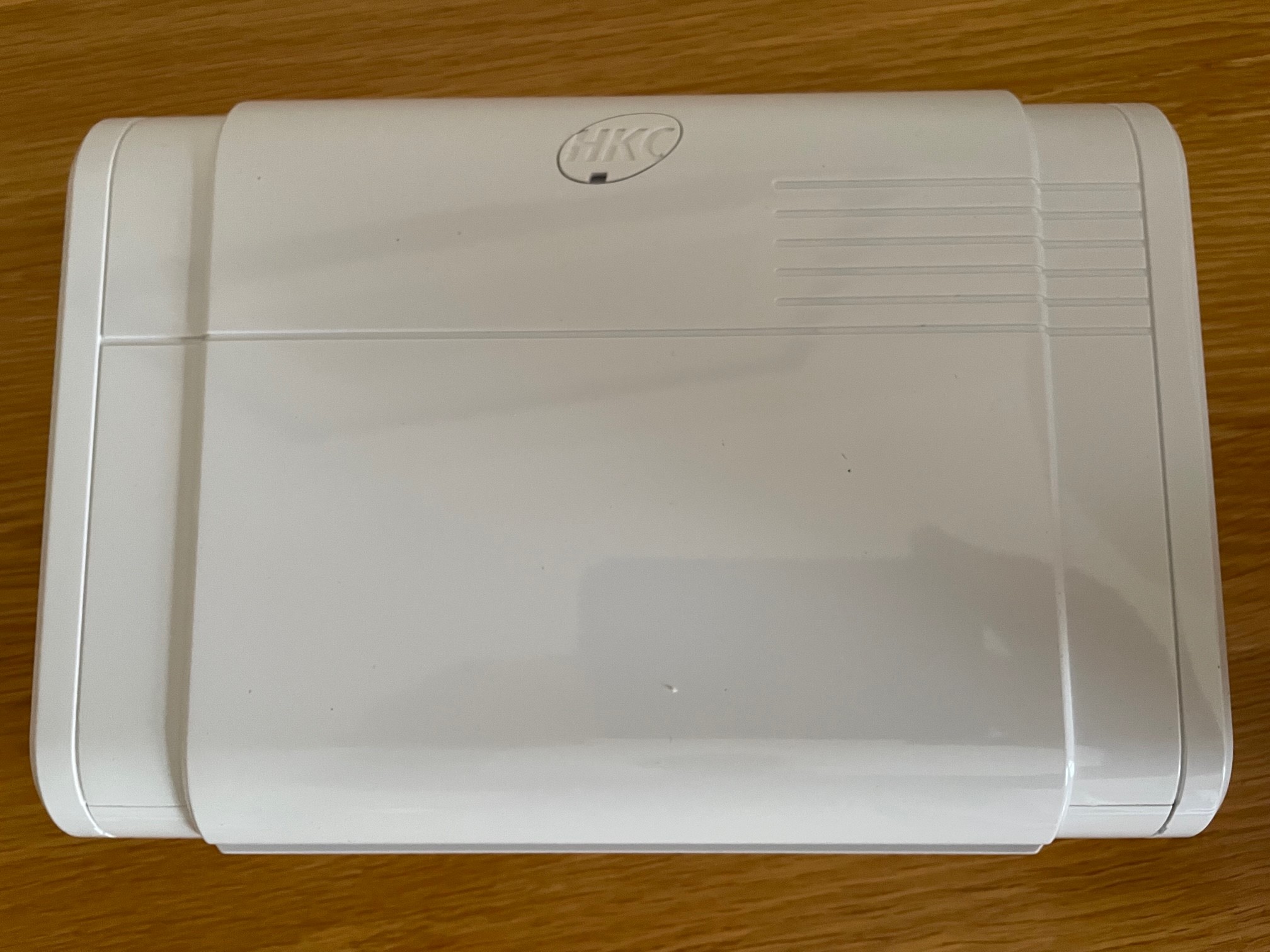

It comes as a PCB circuit board assembly that fits inside the various housings. There is a boxed version (SW-OP8B) for remote expansion - box is made from 1.2mm steel.

Technical Details:

• Sits on ID bus - max. 20 per system
• 8 fully programmable changeover relays
• LED indicator for each relay
• Switch to activate each relay manually
• Voltage: 10Vdc to 15Vdc

• Current:	2mA quiescent
  	190mA (relays on)

• Temperature: -10 to +40°C

• Weight:	90g (SW-OP8)
  	650g (SW-OP8B)

• Size:	14 x 93 x 95mm (SW-OP8)
  	190 x 114 x 42mm (SW-OP8B)

• BS 8243 & PD6662

• EN 50131-1

  Grade 2 Class II
