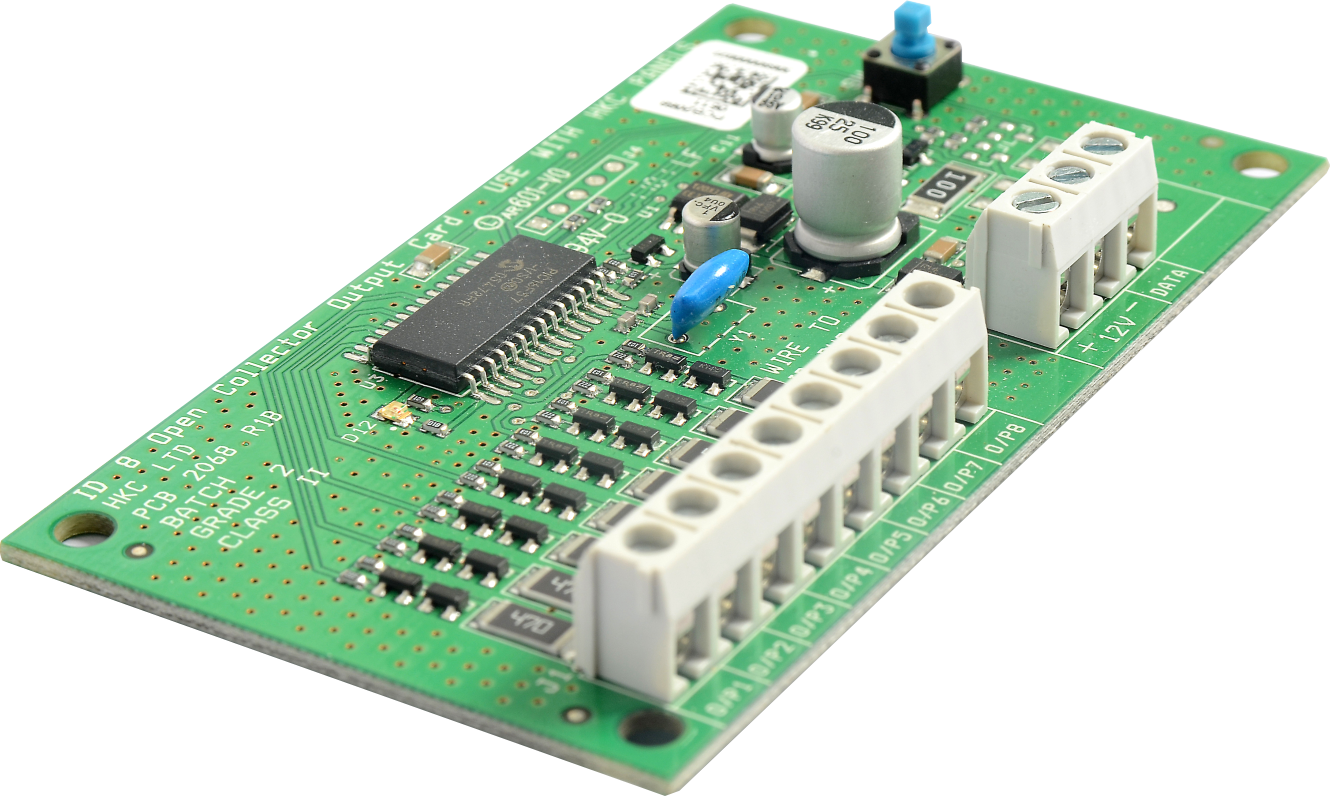

The SW-IDOP8 is an eight output expander for the SW-1070 panel range.

It comes as a PCB circuit board assembly that fits inside the various housings and is ideal for triggering 3rd party dialler equipment.

Technical Details:

• Sits on ID bus - max. 20 per system
• 8 fully programmable open collector transistors
• Low power consumption
• Pre-fitted wiring harness
• Voltage: 10Vdc to 15Vdc
• Current: 2mA quiescent
• Temperature: -10 to +40°C
• Weight: 50g (inc. harness)
• Size: 13 x 54 x 93mm
• BS 8243 & PD6662

• EN 50131-1

  Grade 2 Class II
