The SW-EXT10 is a ten zone expander for the SW-1070 panel range.

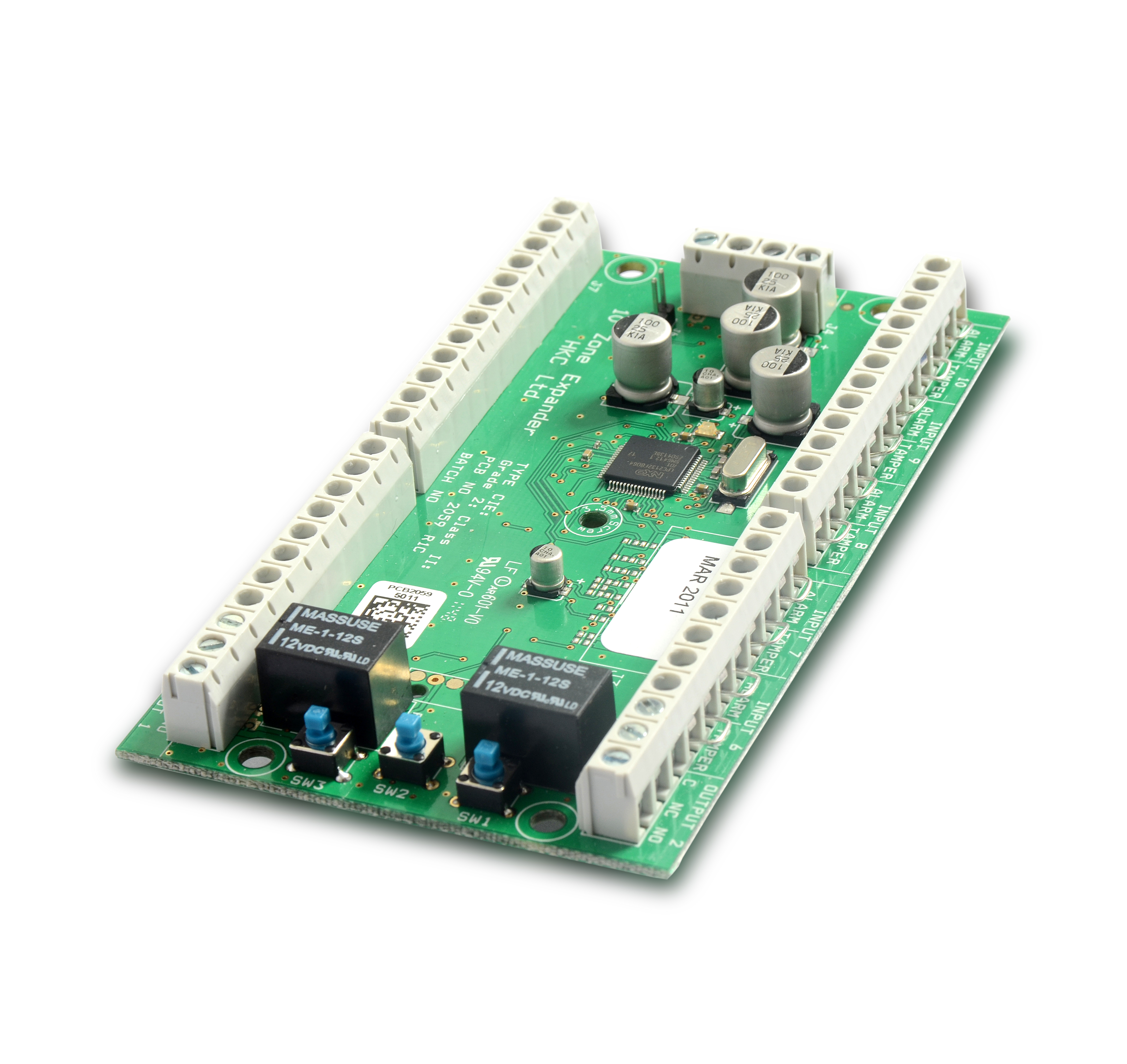

It comes as a PCB circuit board assembly that fits inside the SW-1070’s housing. There is a boxed version (SW-EXT10B) for remote expansion.

Technical Details:

• All 10 expander zones analysed for inertia sensors
• 2 fully programmable changeover relays
• LED indicator for each relay
• Switch to activate each relay manually
• Voltage: 10Vdc to 15Vdc

• Current:	80mA quiescent
  	20g (magnet)

• Temperature: -10 to +40°C
• Weight: 95g (SW-EXT10)
• 460g (SW-EXT10B)
• Size: 125 x 72 x 15mm (SW-EXT10)
• 236 x 166 x 42mm (SW-EXT10B)
• BS 8243 & PD6662

• EN 50131-1

  Grade 2 Class II
