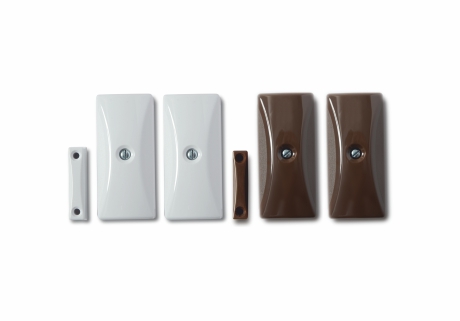

HKC’s ID Sensor gives you added flexibility and are very easy to install. The variations are as follows:

• White ID Inertia Sensor: SEN-IDW
• White ID Inertia Sensor with Reed Switch (MC): SEN-IDWR

Also available in Brown: i.e. SEN-IDB & SEN-IDBR.

Technical Details:

• 3-Wire connection
• 10 devices per bus
• Individualised identities per device

• Current Consumption:	2.5mA (quiescent)
  	5.0mA (max.)

• Weight:	47g (main module)
  	8g (magnet)

• Size:	85 x 33 x 26mm (main module)
  	41 x 15 x 10mm (magnet)

• Temperature: -10 to +40°C
• BS 8243 & PD6662
• EN 50131-2-6 & EN 50131-2-8
• Grade 2 Class II

Also available without inertia sensor heads:

• White ID Zone Module: ZM-W
• White ID Zone Module with Reed: ZM-WR
• Brown ID Zone Module: ZM-B
• Brown ID Zone Module with Reed: ZM-BR
