Building on our long tradition of manufacturing stable and robust inertia sensors and magnetic contacts, HKC is pleased to introduce its Extra Slim wired sensor.

The sensor is designed to fit onto the smallest of door and window frames without any compromise.

Technical Details:

• Slim profile for aesthetically sensitive applications
• Element inside Inertia head automatically self-align i.e. mounting is omnidirectional

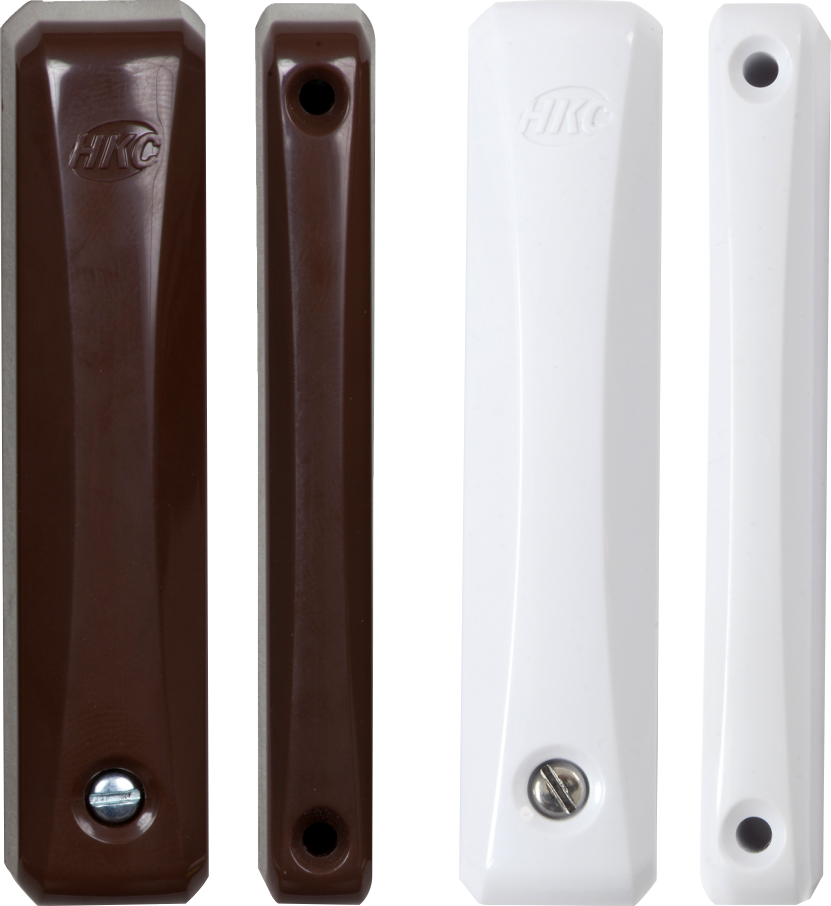

• Available in white or brown
• Available with and without Magnetic Contacts
• Magnetic Contact activation gap is same on left and right
• “REED” terminal blocks can be used as spare terminals on the non-MC products
• Power Consumption: nil
• Temperature: -10 to +40°C

• Weight:	30g (main module)
  	20g (magnet)

• Size:	91mm x 24mm x 21mm (main module)
  	91mm x 22mm x 12mm (magnet)

• BS 8243 & PD6662
• EN 50136-2-6 & EN 50131-2-8 (Grade 2)
• Environmental Class II
