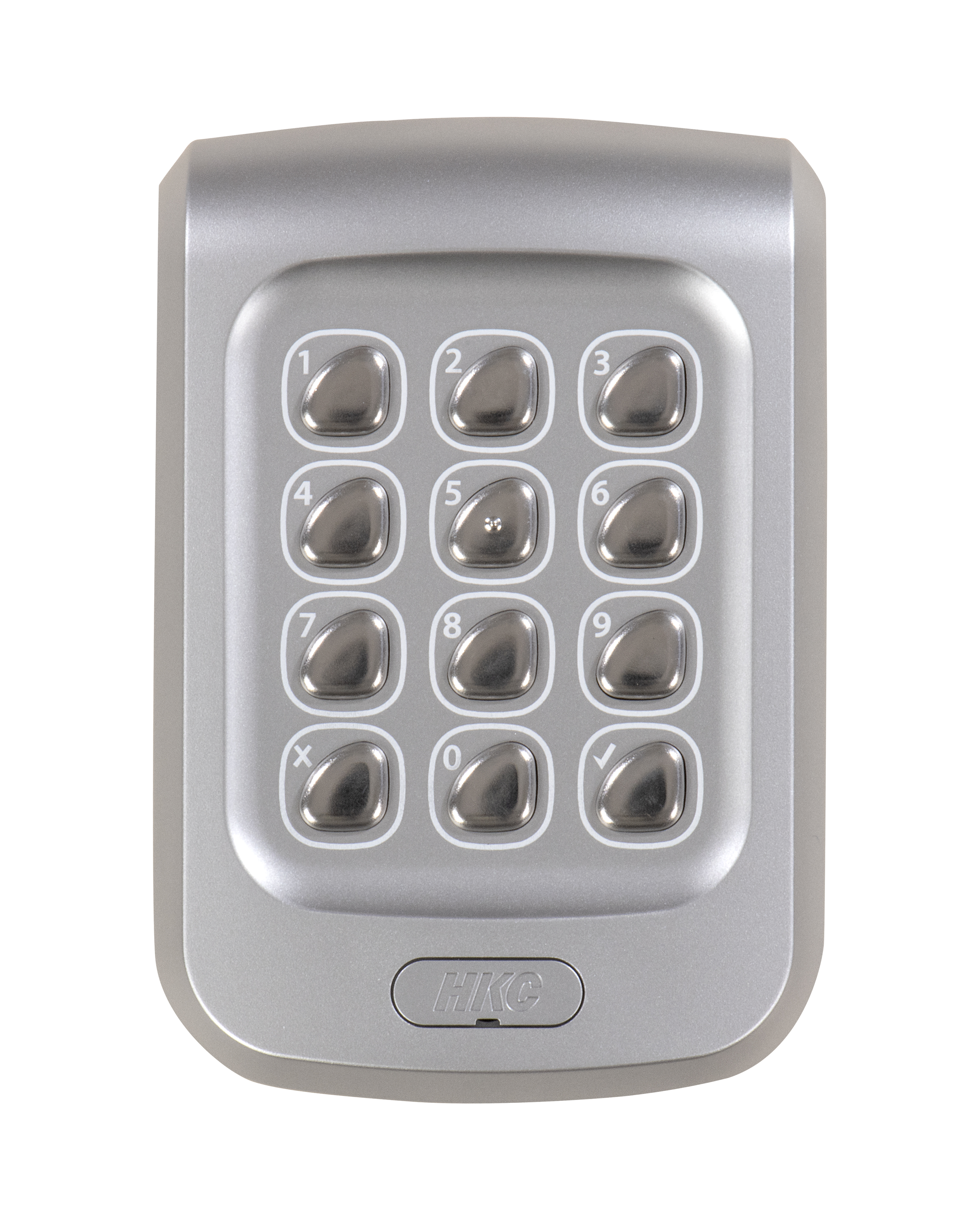

A secure and sleek wireless access control unit designed to protect and control access to both residential and commercial properties. With programmable entry codes, this product allows up to 250 unique entry codes to suit all applications. Proximity version availabe.

Using HKC’s SecureWave wireless technology the keypad can be integrated with our SW-10270 panel and can also work in standalone mode with our wireless relay box (RF-RBX).

The RF Access keypad is locally configurable through SmartLink700. It is IP67 rated to ensure it is weather proof.

Technical Details:

• Standalone Option with wireless output relay box (RF-RBX)
• More secure - no cables to short out
• Easy to programme - Configurable via SL700
• Use as a replacement for old keypads with cable damage
• Use for Alarm Exit/Entry confirmation
• Input Power: 2 Duracell DL123A batteries
• Current Consumption:
  Standby: 7μA
  Transmit: 100mA (peak)
• Range: Line of sight >400m
• Battery Life: Typically 3 years
• Max. number of users: 250
• RF-AK7P comes with proximity tag
• Size: 124mm x 87mm x 31mm
• Weight: 225g
• IP Rating: 67
• Temperature: -25 to +60°C
