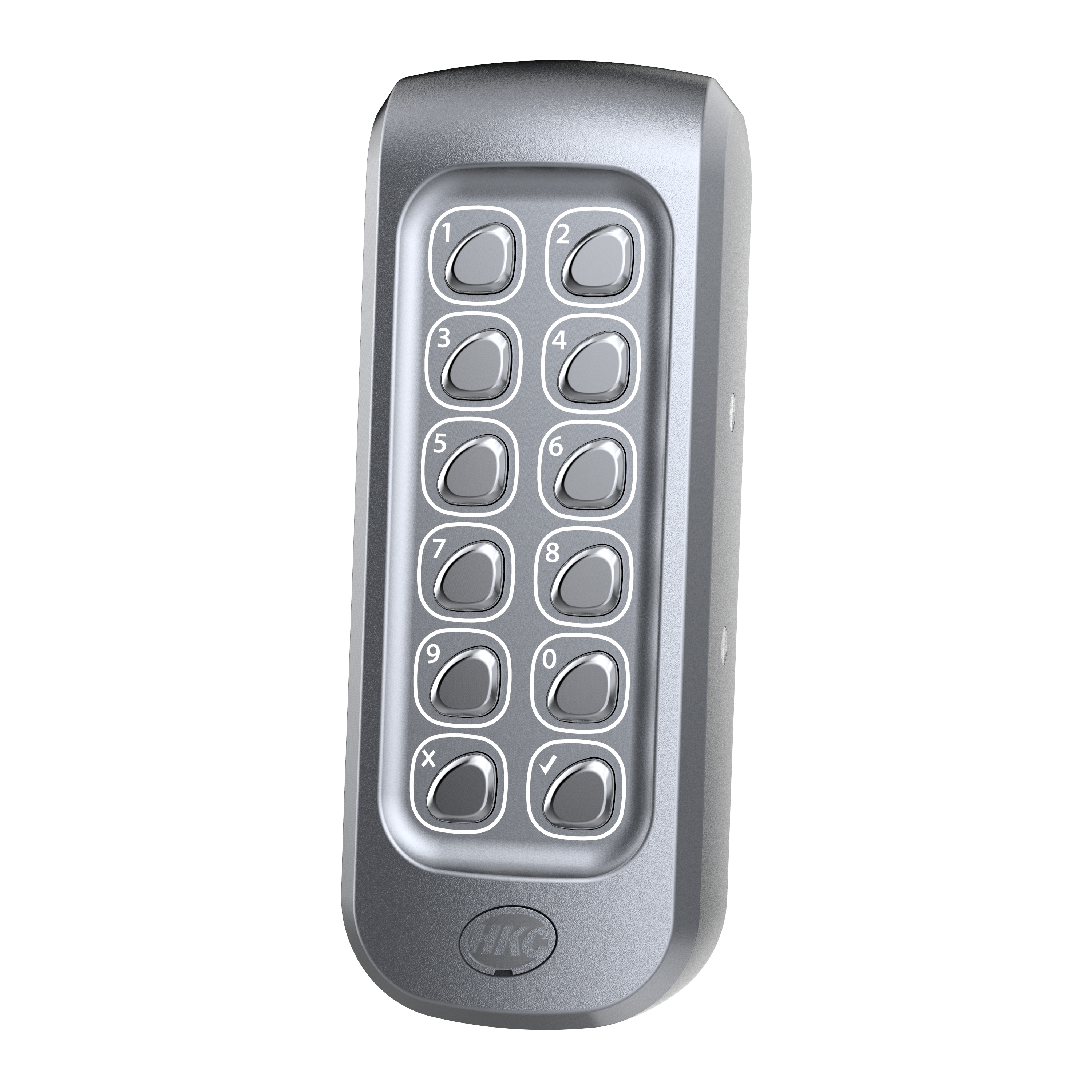

A slim version of the AK-7, this is a sleek, hard- wearing access control unit to secure your premises and control entry. With programmable entry codes, this product gives you the power to create up to 1,000 unique entry codes to suit your needs. High-powered LED lights mounted on the side of the unit illuminate the immediate vicinity, while the backlight behind the keys can be customised to display a range of different colours. An IP67 rating ensures it is all-weather proof come rain hail or shine. The unit is also locally configurable through SmartLink700

Technical Details:

• Input Power: 12V to 24V AC or DC
• Current Consumption:
  90mA quiescent (default) or
  20mA quiescent (no backlight)
  250mA active (default) or
  550mA active (max. brightness back & side
  lights)
• Relay contact capacity: 5A/50VAC
• Max. number of users: 1,000
• Proximity version available: AKPS-7
• Size: 152mm x 60mm x 31mm
• Weight: 200g
• IP Rating: 67
• Temperature: -25 to +60°C
