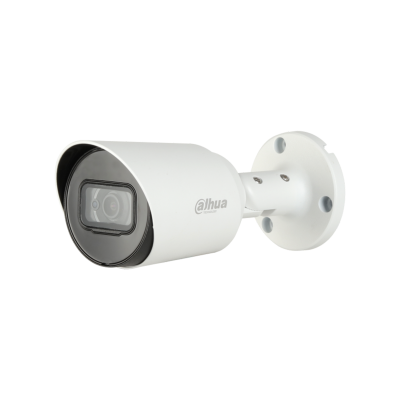

PoC Series - (5MP)

Brand: Dahua
Product Code: DH-HAC-HFW1500TP-A-POC-0360B

Technical Details:

Camera
Image Sensor 1/2.7 inch CMOS
Max. Resolution 2592 (H) × 1944 (V), 5MP
Scanning System Progressive
Electronic Shutter Speed
  • PAL:1/25s–1/100000s
  • NTSC:1/30s–1/100000s
S/N Ratio >65dB
Min. Illumination 0.02Lux/F1.85, 30IRE, 0Lux IR on
Illumination Distance Up to 30m (98feet)
Illuminator On/Off Control Auto; manual
IR LED Number  1
Pan/Tilt/Rotation Range
  • Pan: 0°–360°
  • Tilt: 0°–90°
  • Rotation: 0°–360°
Lens
Lens Type Fixed lens
Mount Type Board-in
Focal Length 3.6mm
Max. Aperture F1.85
Angle of View
  • H: 77.5°
  • V: 56.5°
Iris Type Fixed iris
Close Focus Distance 1400mm
55.1''
DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to
pinpoint the right camera for your needs. The DORI distance is calculated based on
sensor specification and lab test result according to EN 62676-4 which defines the
criteria for Detect, Observe, Recognize and Identify respectively.

  DORI Definition Distance
Detect 25px/m (8px/ft) 3.6mm: 80m(262ft)
Observe 63px/m (19px/ft) 3.6mm: 32m(105ft)
Recognize 125px/m (38px/ft) 3.6mm: 16m(52ft)
Identify 250ppm (76px/ft) 3.6mm: 8m(26ft)
Video
Frame Rate 20fps@5MP, 25/30fps@4MP, 25/30fps@1080P
Resolution 5MP (2592×1944)
BLC BLC/HLC/WDR
WDR DWDR
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
White Balance Auto / Manual
Gain Control AGC
Noise Reduction 2D NR
Smart IR Auto / Manual
Certifications
Certifications CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Audio Output Built-in mic
Video Output 1-channel BNC high definition video output / CVBS
video output (Can switch)
Power
Power Supply 12V ±30% DC
Power Consumption Max. 3.6W (12V DC, IR on)
Environment
Operating Temperature -40°C to +60°C (-40°F to 140°F); <95% (non-condensation)
Storage Temperature -40°C to +60°C (-40°F to 140°F); <95% (non-condensation)
Protection Grade IP67
Structure
Casing Aluminium
Camera Dimensions 176mm×72.4mm×72.5mm (6.93"×2.85"×2.85")
Net Weight 0.37kg (0.82lb)
Gross Weight 0.48kg (1.06lb)



Brackets:

  • DH-PFA134, DH-PFA152-E
