HDCVI - (2MP / 5MP / 8MP)

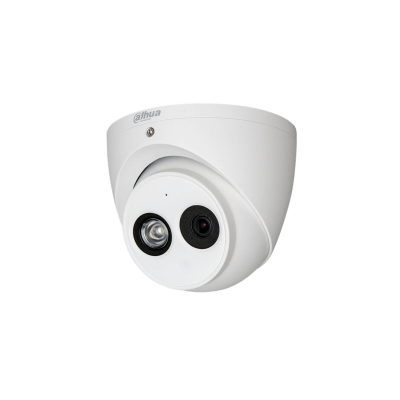

Brand: Dahua
Product Code: DH-HAC-HDW1200EMP-A-0280B-S5



Technical Details:



Camera
Image Sensor 1/2.7 inch CMOS
Effective Pixels 1920(H)×1080(V), 2MP
Scanning System Progressive
Electronic Shutter Speed
  • PAL: 1/25s–1/100000s
  • NTSC: 1/30s–1/100000s
S/N Ratio > 65 dB
Min. Illumination 0.02Lux/F1.9, 30IRE, 0Lux IR on
Illumination Distance 50 m (164 ft)
Illuminator On/Off Control Auto; manual
IR LED Number 1
Pan/Tilt/Rotation Range
  • Pan: 0°–360°
  • Tilt: 0°–78°
  • Rotation: 0°–360°
 Lens
Lens Type Fixed-Focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm; 6 mm
Max. Aperture F1.9
Field of View
  • 2.8 mm: 119° x 101° x 54° (diagonal x horizontal x vertical)
  • 3.6 mm: 100° x 84° x 45° (diagonal x horizontal x vertical)
  • 6 mm: 60° x 56° x 30° (diagonal x horizontal x vertical)
Iris Type  Fixed iris
Close Focus Distance
  • 2.8 mm: 0.5 m (1.7 ft)
  • 3.6 mm: 0.8 m (2.6 ft)
  • 6 mm: 2 m (6.6 ft)
DORI Distance
Lens Detect Observe Recognize Identify
2.8 mm 38.6 m
(126.6 ft)		 15.4 m
(50.5 ft)		 7.7 m
(25.3 ft)		 3.9 m
(12.8 ft)
3.6 mm 49.7 m
(163.1 ft)		 19.9 m
(65.3 ft)		 9.9 m
(32.5 ft)		 5 m
(16.4 ft)
6 mm 82.8 m
(271.7 ft)		 33.1 m
(108.6 ft)		 16.6 m
(54.5 ft)		 8.3 m
(27.2 ft)
Video
Frame Rate
  • CVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps;
  • AHD: 1080P@25/30fps; 720P@25/30fps;
  • TVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps;
  • CVBS: 960H
Resolution 1080P (1920×1080); 720P (1280×720); 960H (960× 576/960×480))
Day/Night Auto switch by ICR
BLC BLC/HLC/DWDR
WDR DWDR
White Balance Auto; manual
Gain Control Auto; manual
Noise Reduction 2D NR
Smart IR Yes
Defog Electronic defog
Mirror Off/On
Privacy Masking Off/On (8 areas, rectangle)
Certifications
Certifications CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Output One channel built-in mic (-A)
Active Deterrence
Red/Blue Light Warning Flash: 5 s–60 s; frequency: high/medium/low
Sound Warning
  • Audio 1: alarm
  • Audio2: No parking here
  • Audio3: Private land no entry.
  • Audio4: Warning zone keep off
  • Audio5: Welcome
  • Volume: high/medium/low; duration: 5 s–60 s; 110 dB
Power
Power Supply 12V ±30% DC
Power Consumption Max 3.2W (12V DC, IR on)
Environment
Operating Temperature –40°C to +60°C (–40°F to 140°F);<95% (non-condensation)
Storage Temperature –40°C to +60°C (–40°F to 140°F);<95% (non-condensation)
Protection Grade IP67
Structure
Casing Metal throughout the whole casing
Camera Dimensions φ106.0 mm × 93.6 mm (φ4.17" × 3.69")
Net Weight 0.44 Kg (0.97 lb)
Gross Weight 0.59 Kg (1.3 lb)



Brackets:

  • DH-PFA139, *DH-PFA130-E DH-PFB204W, DH-PFA152E
